Model i600/i601

Model i600/i601

• This A/D module provides 16se/8di voltage input channels (Ch#1…#16)⁴⁰ , each of which are independently software programmable with Windows software that support the direct connection to many common sensor types
• Voltage input range on each channel is independently software programmable to one of: ±20mV, ±40mV, ±80mV, ±150mV, ±300mV, ±600mV, ±1.2V, ±2.5V, ±5V, ±10V

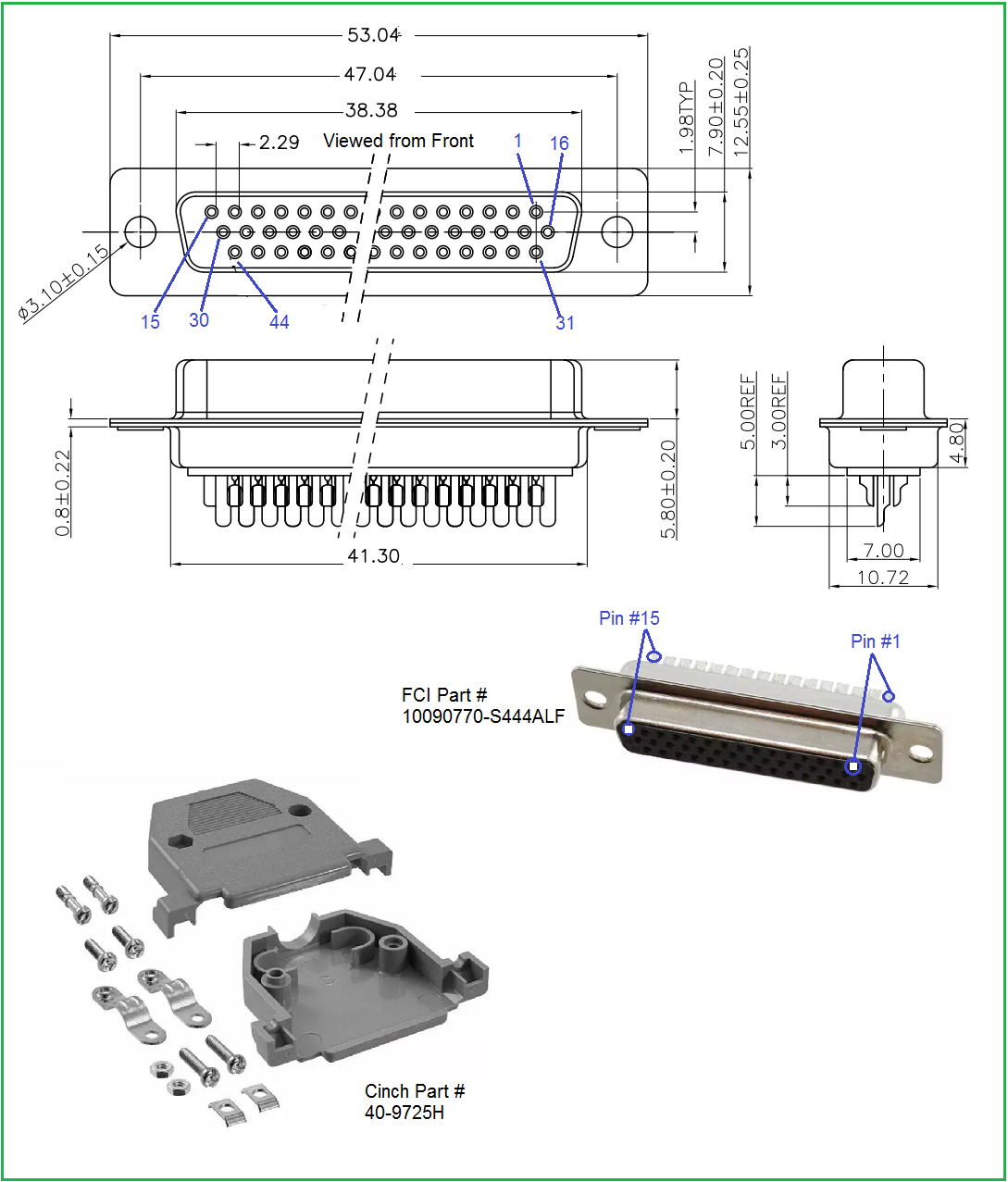

• Included is a mating Hd44 Female Connector & Cover. Alternatively, one can attach i600/i601 to the following optional wiring boxes: i510,  i511,  i512. If one is working with thermocouples, an i510 wiring box is required due to it’s internal cold junction compensation.
• i600 and i601 are stand-alone USB data acquisition systems. No additional components, such as external power supply, are required. Included in the box: i60x Hardware Device, USB Cable, Software on CD, Mating Hd44 Female Connector & Hd44 Cover. For details, see the i60x Installation Guide.
• Digitize at a maximum sample rate of 160K sample/sec for 1 channel, 12Ks/sec/ch for 2 channels, 6Ks/sec/ch for 4 channels, and 3Ks/sec/ch for 8 channels. For more details, see Voltage Accuracy.
• Each channel provides the following software programmable parameters: A/D Signal-Averaging-Per-Point (0 … 100mSec)³ , Sample-Rate (samples-per-second-per-channel)¹⁷ , Digital IIR Filter (LowPass, HighPass, BandPass, or BandStop)⁵⁵ , Voltage Measurement Range (±20mV…±10V)¹ , Sensor Type¹³ , and Single-Ended or Differential Wiring
• Excitation power ( 3.3V ±0.2V, <80mA, 28mA per sensor max) is provided for sensors³⁰, along with other End User Power voltages. This 3.3V, which is referenced to instruNet Ground, is automatically readback by A/D when calculating sensor values.
• The 4mA sink/source digital I/O port consists of 4 individual TTL-compatible lines (Ch#25…#28), each of which can be configured as: input or output bit⁴⁵ . When configured as an input, a channel can be used to sense a digital high (2 to 5.5 Volts) or digital low (0V to 0.8Volts). When configured as an output, a channel can be set high (e.g. >2V) or low (e.g. <0.8V). These I/O pins are short-circuit protected against high voltages up to 6.0V and down to -6.0V.

i600/i601 Features

• The i600/i601 USB Data Acquisition device connects a Windows computer to sensors and controls via analog inputs, digital inputs and digital outputs.
• The i601 product provides ±36V bank electrical isolation; whereas the less costly i600 connects I/O signal ground to computer ground. i60x receives power from USB bus.
• 16se/8di Voltage Input Channels with extremely accurate
  24-bit A/D Converter²⁹
• 4x Digital I/O (4mA sink/source, 0 to 3.3V)
• Connect Directly To Sensors: Voltage,  Thermocouple,  Thermistor,  RTD,  Load Cell³⁰,  Strain Gage³⁰,  Potentiometer,  Current,  Resistance
